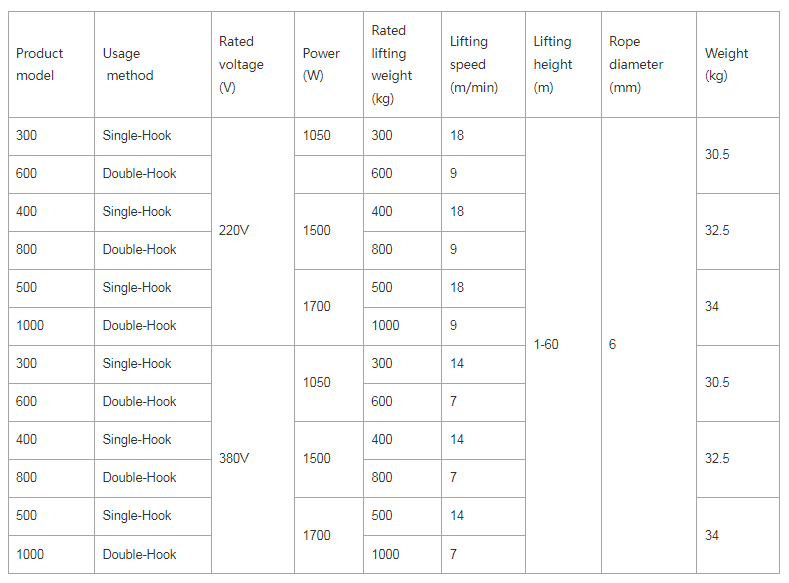

Produced with 220V and 380V power supply options.
It is powered cooperatively by a conical-rotor brake motor and ordinary motor. A variable speed device is installed to realize a smooth material lifting.
This kind of hoist combines the features of electric hoist and hoister together. It can be used both in ground construction and aerial work. Typical applications are small and medium-sized residential construction, high-rise building decoration, plate lifting, lifting soil in drilling wells, and material hoisting in warehouse. It features large lifting volume, large lifting height, and stable operation.
Product advantage
1.This product can lift goods to an ultrahigh position. The standard diameter of the rope is 6.2 mm, 30 meters long. It can be lengthened if the user has special needs.
2.The product can pull goods horizontally and lift them vertically. If inclined angle lifting is required, the product does not need additional ropes.
3.The electric hoist has a fast lifting speed at 14 meters per minute for high-speed with single rope and 7 meters per minute for low-speed with double ropes.
